Features

Screenshot 2025-02-05 at 10.51_edited.jpg

Candlestick Plots

Best way to compare data against multiple boats

Features

- Maximum

- Minimum

- Median Line

- Middle 50% Data inside the box

Scatter Plots

Great to look at moding

Features

- Red is Port Tack

- Green is Starboard Tack

- Black Trendline is average for both tacks

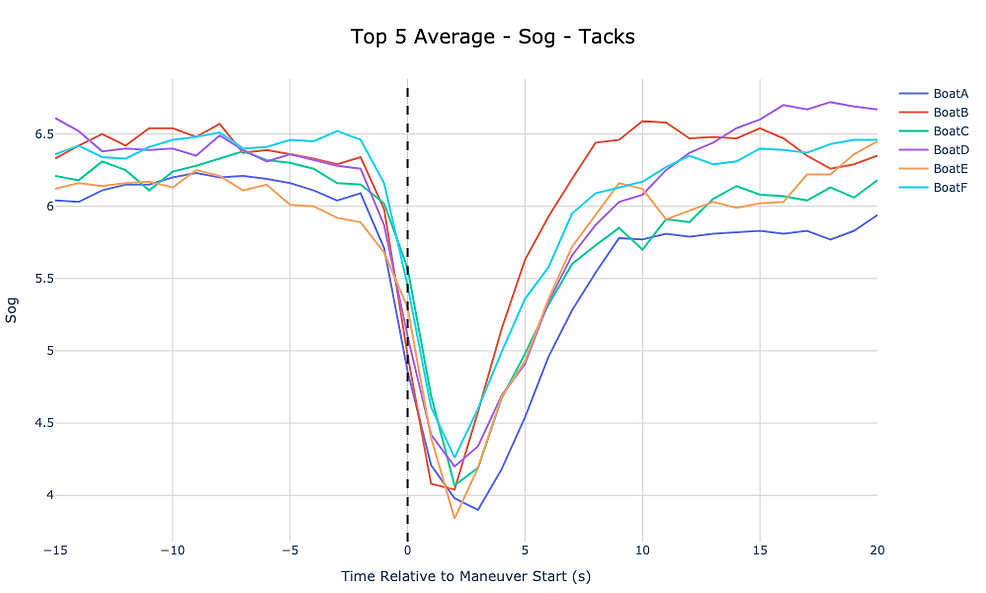

Time Series Plots

Looking at maneuver trends

Features

- Metric displayed on Y axis

- Time relative to head to wind on x axis

- Black Vertical Line is head to wind

XY Chart Plots

Maneuver Tracks

Features

- Displays manouver track for each boat

- Look at exit and entry angles

- Tacks, Entry is at the bottom

- Gybes, Entry is at the top


Table Charts

Great to look at correlation between best manouvers

Features

- Manouvers sorted by MMG (Meters Made Good)

- Metrics colored by value, darker is larger

Straight Line Metrics

VMG_Norm - Velocity Made Good Normalized: How fast you sail directly Upwind or Downwind

SOG - Speed Over Ground: GPS Speed

TWA_Norm - True Wind Angle Normalized: Angle you are sailing relative to the wind

Heel_Norm - Heel Normalized: Positive is Leeward Heel and Negative is Winward Heel

Pitch - Pitch of the boat Fore - Aft: Positive is Bow up, Negative is Bow Down

Heel_Stability - How many degrees of heel you go through in a time period: Greater number is less stable, lower number is more stable

MMG- Meters Made Good: How far upwind or downwind you travel in a maneuver

BS_Entry - Boatspeed Entry: Speed entering the maneuver

BS_Exit - Boatspeed Exit: Speed exiting maneuver

BS_Delta - Boatspeed Delta: Maximum - Minimum Boatspeed in maneuver

BS_Min - Boatspeed Minimum

TWA_Entry - True Wind Angle Entry: Entry angle into maneuver

TWA_Exit - True Wind Angle Exit: Exit angle out of maneuver

Angle - Maneuver Angle: TWA_Entry + TWA_Exit

Maneuver Metrics
